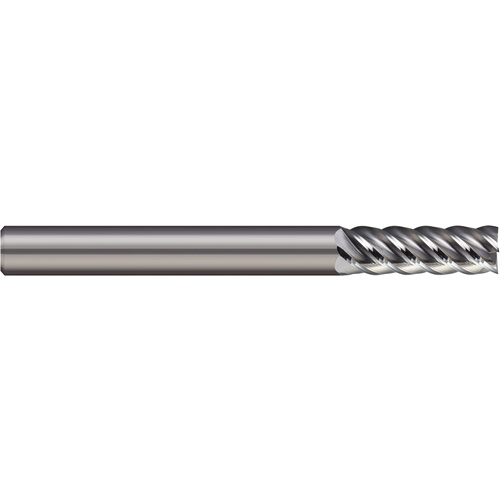

| Cutting Diameter (DC) | 4 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 15 mm |
| Depth of Cut Maximum (APMX) | 15 mm | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 57 mm | Length Group | 3.8D |
| Cutting Edge Material | Carbide | Flute Type | Helical |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Single / Double End | Single End |
| Shank Type | Round |
Product Features
| Remarks | •High Tech Metric End Mills •5 Flute - Center Cutting–45 Helix •Universal: U-Star Material: Soft, Medium, Hard HSC: V-Max Rake: Coating: AlTiN | Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.020
