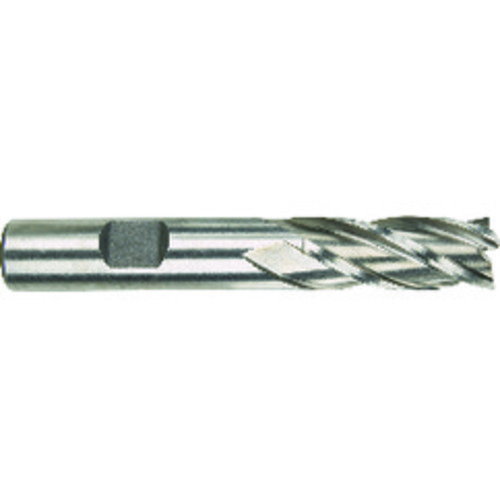

25/32″ × 3/4″ × 1 7/8″ × 4 1/8″ 4 Flute Single End HSS Finishing Non-Center Cutting End Mill-Uncoated Series/List #1897
Price: Log in For Price
| Cutting Diameter (DC) | 25/32″ | Usable Length (LU) | 1-7/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 1-7/8″ | Tool Type | Single End |
| Overall Length (OAL) | 3-5/8″ | Length Group | Regular |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.7813″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Non-Center Cutting | Series/List # | 1897 |
Product Features
| Remarks | •Multi-Flute Regular Length Single End Mills •High Speed Steel | Country of Origin | USA |
Shipping Info
Package Length
3.80000
Package Width
.90000
Package Height
.90000
Package Weight
0.268
