ECAI-B3 .375-1.5CR125-4EC IC1508

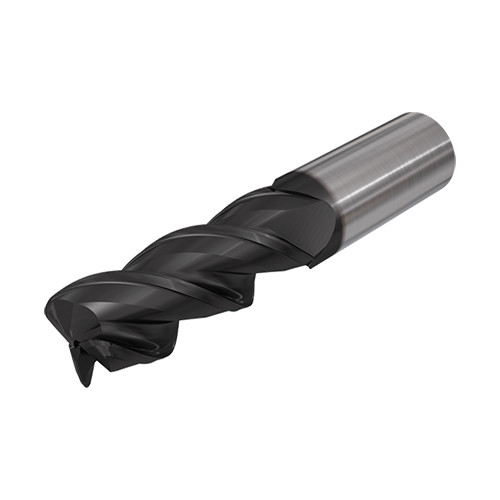

Corner Radius End Mill; 3/8″ Dia. × 1-1/2″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; DLC

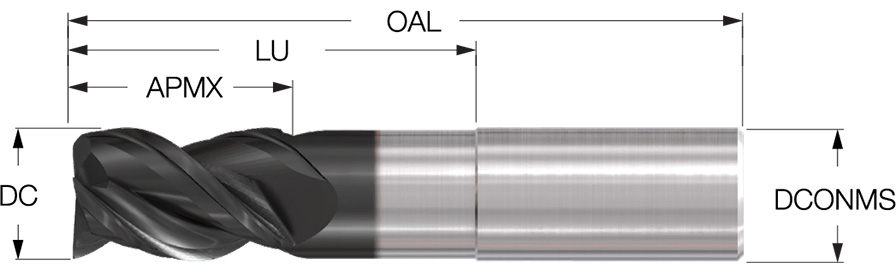

| Cutting Diameter (DC) | 3/8″ | Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 4″ | Grade | IC1508 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |

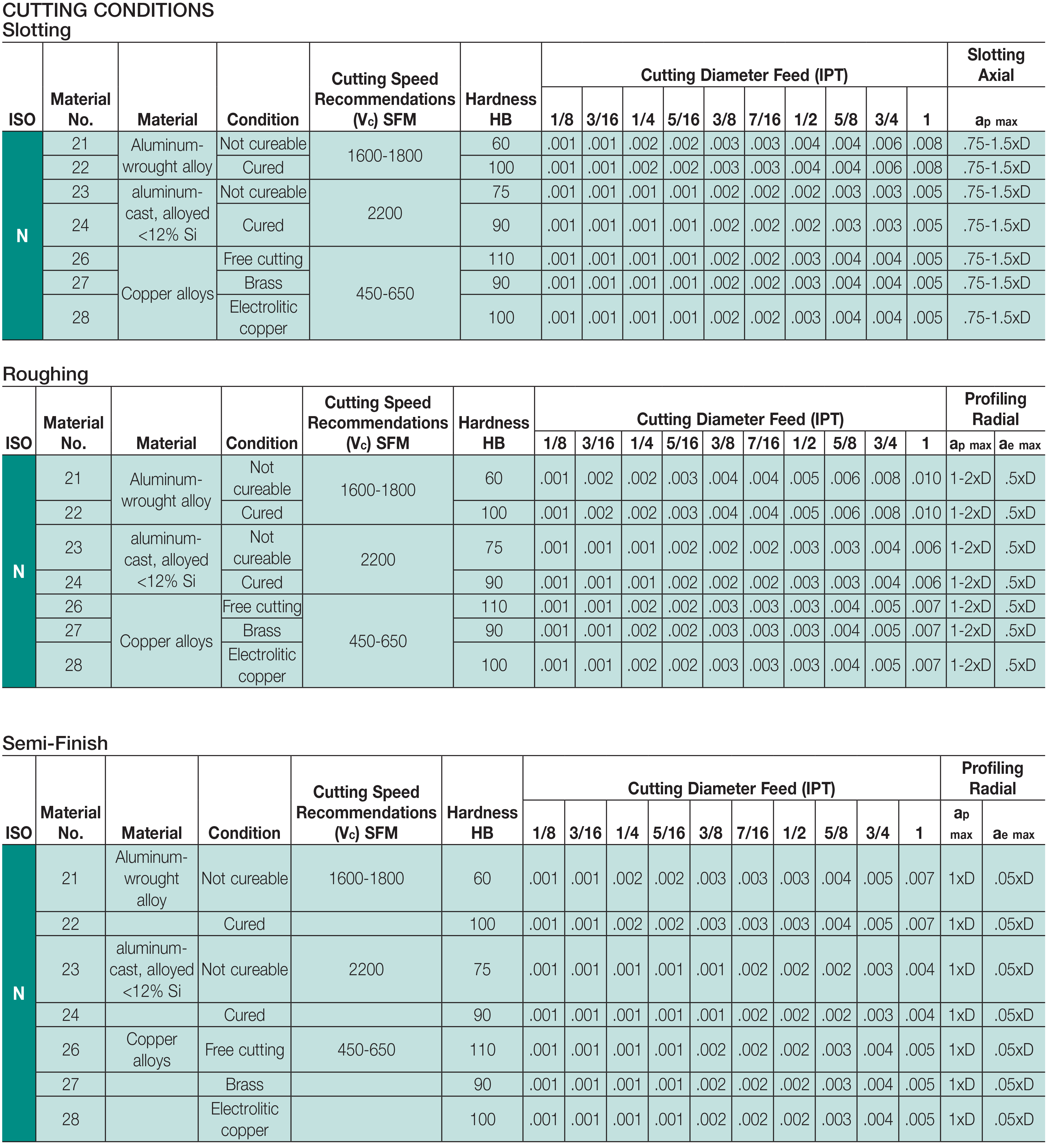

| Coating | DLC | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Body Material | Carbide |
| Usable Length (LU) | 1-1/2″ | Decimal Equivalent | 0.375″ |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
Product Features
| Family Description | DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials | Country of Origin | USA |
