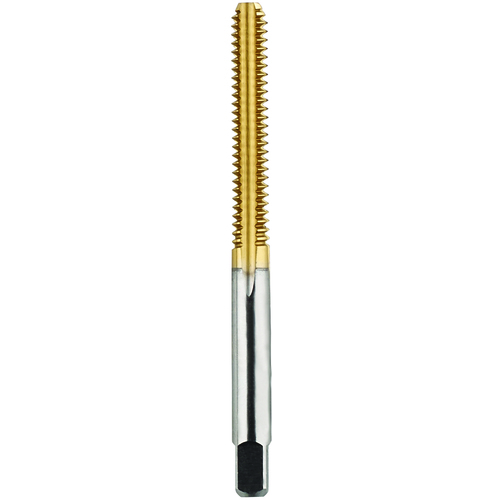

M3.5 Metric, 0.6 mm Pitch, 3 -Flute, D4 Bottoming Straight Flute Tap Series/List #111
Straight Flute Tap; M3.5 × 0.6 mm ; 2″ OAL ; 3 FL ; HSS ; Uncoated ; D4 ; Series 111
Price: Log in For Price
| Thread Diameter Size (TDZ) | M3.5 | Tool Type | General Purpose Tap |
| Thread Pitch (TP) | 0.6 mm | Chamfer | 1 to 2 Threads |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 2″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 11/16″ | Style | Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 111 |
| Thread Tolerance Class (TCTR) | D4 | Thread Size | M3.5 × 0.6 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.035
