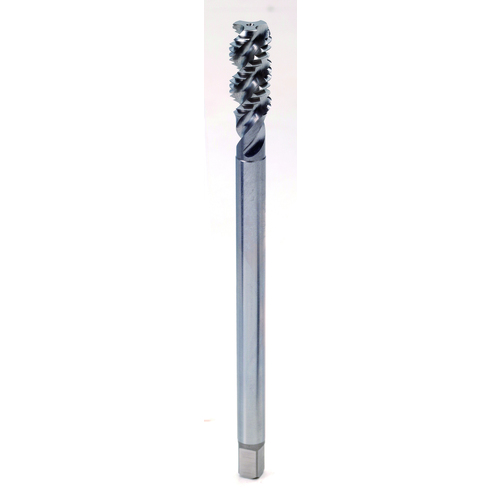

| Thread Diameter Size (TDZ) | #8 | Tool Type | General Purpose |
| Threads per Inch (TPI) | 32 | Standard | 302 |
| Thread Standard | UNC | Chamfer | 4P-5P |
| Overall Length (OAL) | 6″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 3/4″ | End Shape | Plug |
| Usable Length (LU) | 3/4″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Flute Type | Spiral Flute |
| Flute Helix Angle (FHA) | 50 Degrees | Series/List # | T7D01 |
| Cutting Edge Material | HSS | Thread Size | #8 - 32 |
| Thread Tolerance Class (TCTR) | H3 | Shank Type | Square |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
6.375
Package Width
0.5
Package Height
0.5
Package Weight
0.0425
