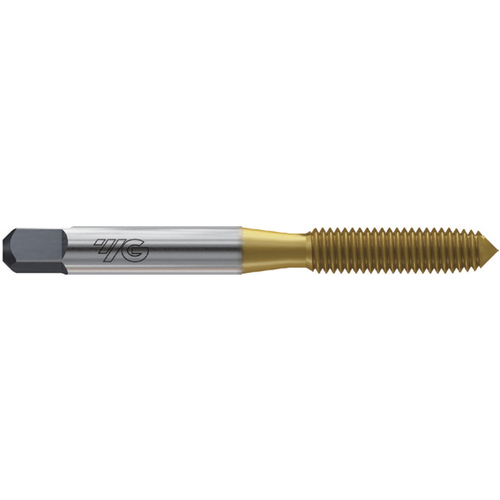

Forming Tap; M10 × 1.5 mm ; 2.94″ OAL × 2.23″ LU × 0.381″ Shank Dia. ; HSS-E ; TIN ; D10 ; Series ZA
Price: Log in For Price
| Tool Type | Form Tap | Chamfer | 4P-5P |
| Thread Diameter Size (TDZ) | M10 | Length Group | 3xD |
| Thread Pitch (TP) | 1.5 mm | Square Size | 0.286″ |
| Overall Length (OAL) | 2.94″ | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 0.98″ | End Shape | Plug |
| Usable Length (LU) | 2.23″ | Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Series/List # | ZA |
| Thread Tolerance Class (TCTR) | D10 | Shank Type | Square |
| Tapping Prehole Diameter (Pre-hole) | 0.3676″ | Lobe Count | 4 |
| Thread Standard | M | Thread Size | M10 × 1.5 mm |
| Coating | TiN |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
3.75
Package Width
0.75
Package Height
0.625
Package Weight
0.0944
