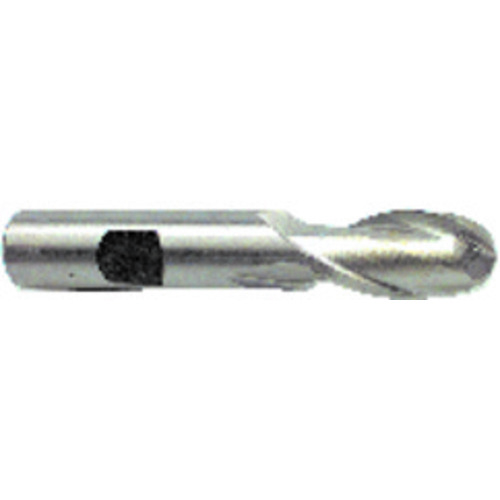

3/16″ Dia. × 3/8″ Shank × 1/2″ DOC × 2-3/8″ OAL, HSS Uncoated, 2 Flute, Ballnose End Mill Series/List #1887
Price: Log in For Price
| Cutting Diameter (DC) | 3/16″ | Corner Radius (RE) | 0.093″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 1/2″ | Length Group | Regular |
| Overall Length (OAL) | 2-3/8″ | End Shape | Ball Nose |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.1875″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 1/2″ | Series/List # | 1887 |
| Applicable Material | | Steel | | Center Cutting | Yes |
Product Features
| Remarks | •2-Flute, Single End Ball Nose •High Speed Steel • Center Cutting | Country of Origin | S.Korea |
Shipping Info
LocalField10
0
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.07
