HSK A63 SRK 6X50

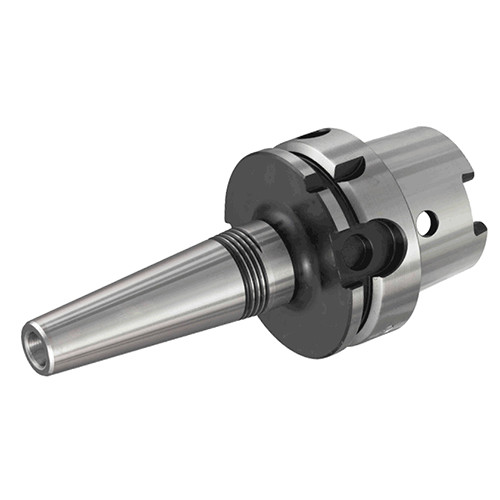

SHRINKIN, thermal chuck collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only.
Price: Log in For Price

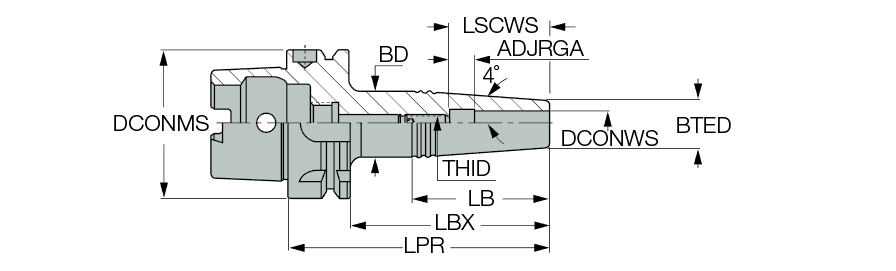

| Connection Diameter Machine Side (DCONMS) | 63 mm | Shank Standard | HSK A |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Series/List # | SHRINK |
| Shank Size (SS) | 63 | Measurement Type | Metric |
| Body Length (LB) | 50 mm | Tool Type | HSK |
| Protruding Length (LPR) | 76 mm | Body Material | Steel |
| Overall Length (OAL) | 108 mm | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). To be used for carbide tools only. For shank dimensions, Click on More Info. Remove preset screw for coolant through. |
Shipping Info
Package Weight
1.693
