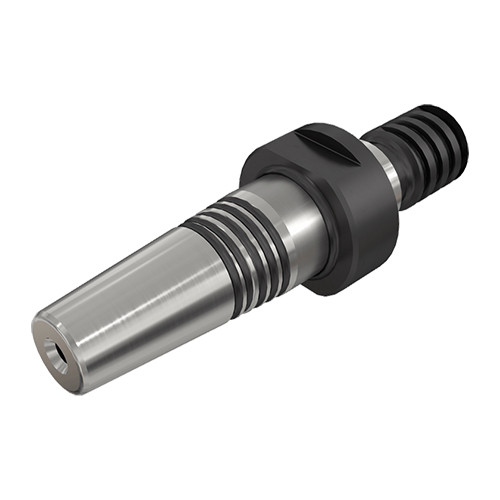

CDP M12 SRK 1/8 X1.75
Shrink Fit Holder ; 1/8″ Hole Dia. ; 2.616″ OAL ; Series SHRINK
Price: Log in For Price

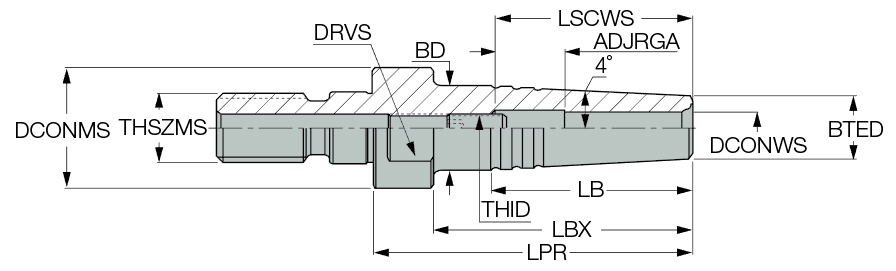

| Connection Diameter Machine Side (DCONMS) | 0.55″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Workpiece Side (DCONWS) | 1/8″ | Clamping Length Workpiece Side (LSCWS) | 0.63″ |
| Body Length (LB) | 1.138″ | Series/List # | SHRINK |
| Body Diameter (BD) | 0.394″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.83″ | Drive Size (DRVS) | 0.687″ |
| Protruding Length (LPR) | 1-3/4″ | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Body Length Maximum (LBX) | 1.415″ | Tool Type | Unique Adapter Milling System |
| Overall Length (OAL) | 2.616″ | Body Material | Steel |
| Shank Standard | FLEXFIT |
Product Features
| Family Description | Thermal shrink chucks with FLEXFIT adaptation, for clamping solid carbide tools. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.163
Related Documentation
