TPHN M-2.5X0.45-W HS

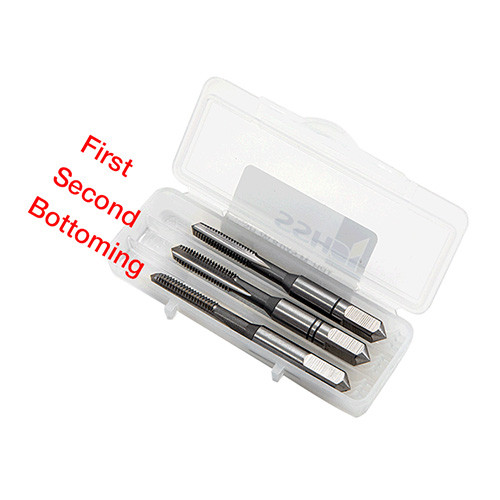

DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation.
Price: Log in For Price

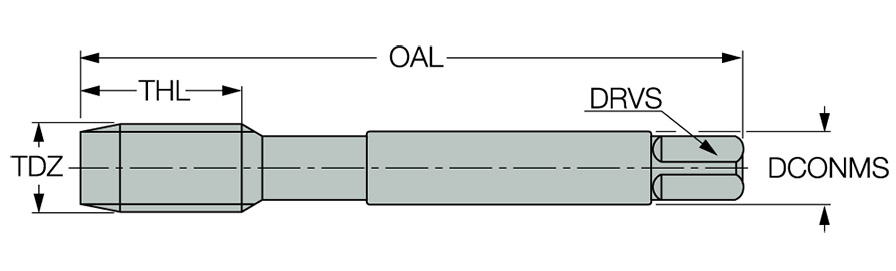

| Thread Diameter Size (TDZ) | M2.5 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Standard | DIN 352 | Measurement Type | Inch |
| Tool Type | Hand Taps | Thread Cutting Part Length (THL) | 0.354″ |
| Overall Length (OAL) | 1.575″ | Grade | HS |
| Connection Diameter Machine Side (DCONMS) | 0.11″ | Thread Pitch (TP) | 0.45 mm |
| Flute Count (NOF) | 3 | Thread Size | M2.5 × 0.45 |
| Cutting Edge Material | HSS | Body Material | HSS |
Product Features
| Family Description | DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation. | Country of Origin | Hungary |
| Remarks | NOTE: Each set contains 2 or 3 taps |
Shipping Info
Additional Fees and Notes
0
Package Weight
12
