TPSN UNF 5/16-24-M HETI

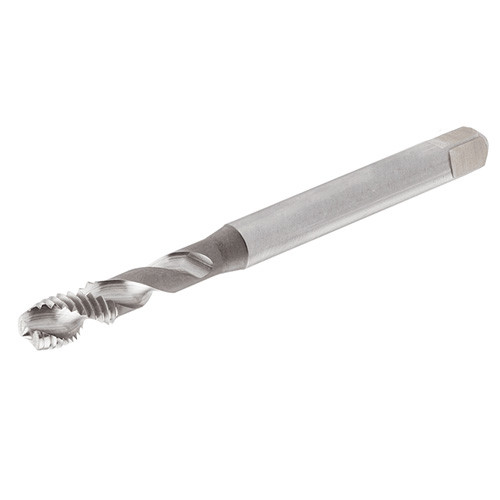

HSSE 5% Co Spiral Flute Machine Taps Unified Fine Threads, for a Wide Range of Materials
Price: Log in For Price

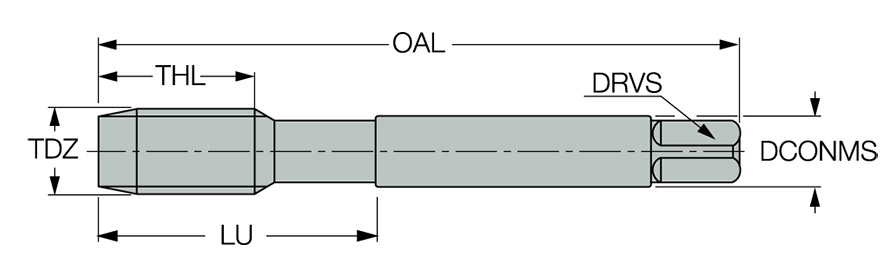

| Thread Diameter Size (TDZ) | UNF 5/16 | Tool Type | Machine Blind Hole Taps |
| Threads per Inch (TPI) | 24 | Coating | TiN |
| Overall Length (OAL) | 3.543″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.591″ | Grade | HETI |
| Usable Length (LU) | 1.38″ | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Body Material | HSS |
| Flute Count (NOF) | 3 | Drive Size (DRVS) | 0.244″ |
| Cutting Edge Material | HSS | Thread Size | UNF 5/16 - 24 |
| Standard | DIN 371 |
Product Features
| Family Description | HSSE 5% Co Spiral Flute Machine Taps Unified Fine Threads, for a Wide Range of Materials | Country of Origin | Hungary |
Shipping Info
LocalField10
0
Package Weight
31
