SLANR 24-15 TANG

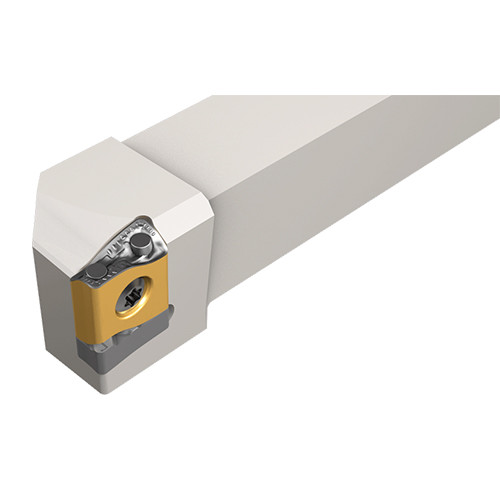

Screw-lock tools carrying the LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning.
Price: Log in For Price

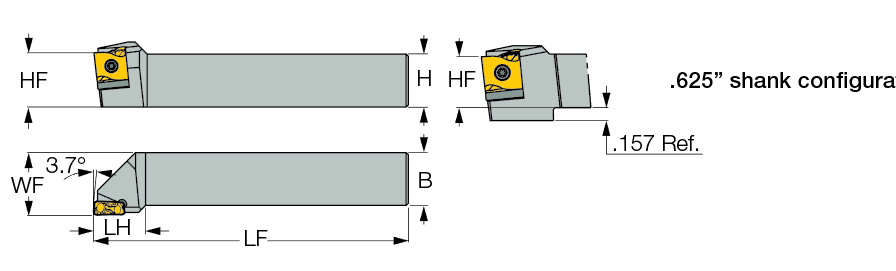

| Shank Height (H) | 1-1/2″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1-1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 7″ | Body Material | Steel |
| Head Length (LH) | 1.38″ | Cutting Position | External |
| Functional Width (WF) | 1.7″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | LNMX 15 | Style | SLANR 24-15 TANG |
| Application | | Ext. Tangential 93° Approach | | Insert Style | 7″ |
Product Features
| Family Description | Screw-lock tools carrying the LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | Country of Origin | Israel |
Shipping Info
Package Weight
4.449
