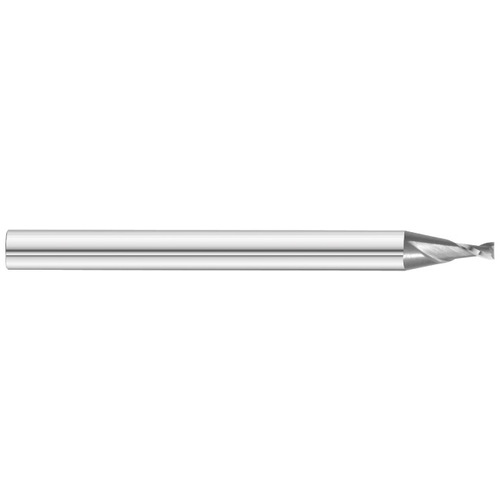

Square End Mill; 0.022″ Dia. × 0.033″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 3215SM
Price: Log in For Price
| Cutting Diameter (DC) | 0.022″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 0.033″ | Usable Length (LU) | 0.033″ |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.022″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 3215SM |
Product Features
| Remarks | |
Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.021
