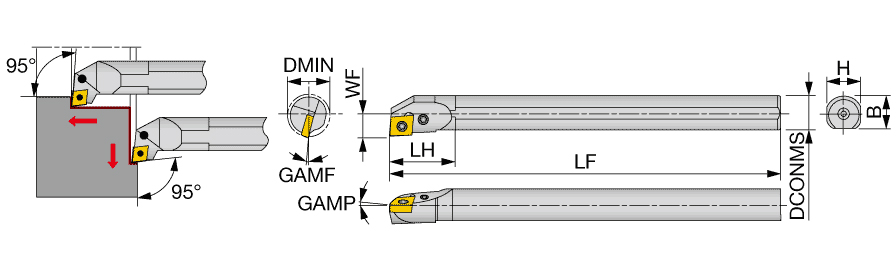

| Connection Diameter Machine Side (DCONMS) | 16 mm | Minimum Bore Diameter (DMIN) | 20 mm |
| Functional Length (LF) | 150 mm | Application | | For 80deg Rhombic insert | |
| Head Length (LH) | 30 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Shank Width (B) | 15.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm | Body Material | Steel |
| Master Insert Identification (MIID) | CNMG090308 | Measurement Type | Metric |
Product Features

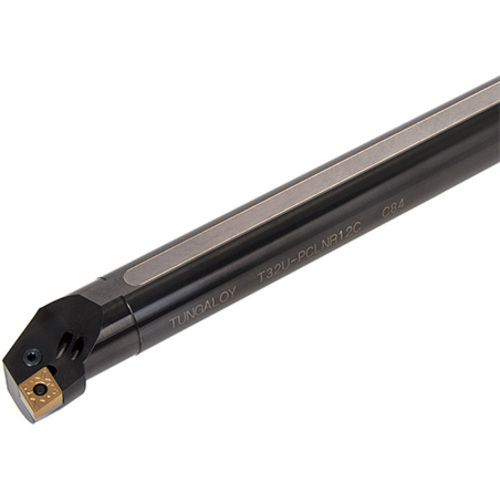

| Family Description | Lever-lock boring bar, for negative 80 deg rhombic insert | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PCLNL** type), and the left hand insert (L) is used for the right hand toolholders (PCLNR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.540
