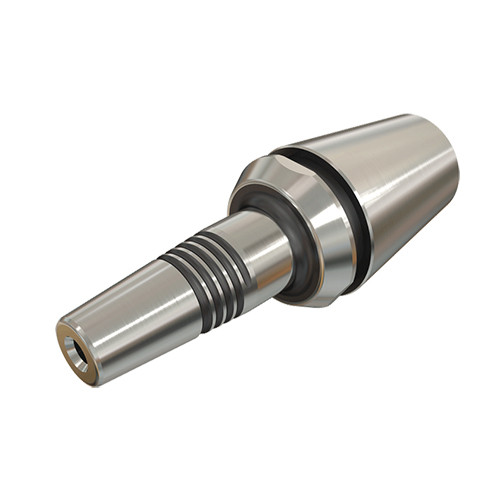

ER16 SRK 5X35
Shrink Fit Holder ; 5 mm Hole Dia. ; 16 mm Shank Dia. ; 62.5 mm OAL
Price: Log in For Price

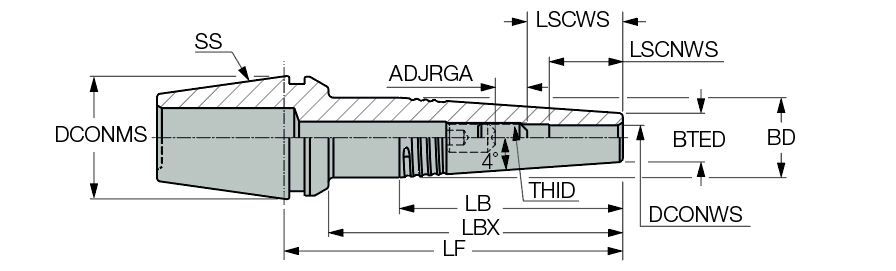

| Connection Diameter Machine Side (DCONMS) | 16 mm | Overall Length (OAL) | 62.5 mm |
| Connection Diameter Workpiece Side (DCONWS) | 5 mm | Clamping Length Workpiece Side (LSCWS) | 21 mm |
| Shank Size (SS) | ER16 | Measurement Type | Metric |
| Body Length (LB) | 14.3 mm | Tool Type | Spring Collets |
| Body Length Maximum (LBX) | 36 mm | Body Material | Steel |
Product Features
| Family Description | Thermal shrinking chucks with integral ER collet, for solid carbide tools only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.130
