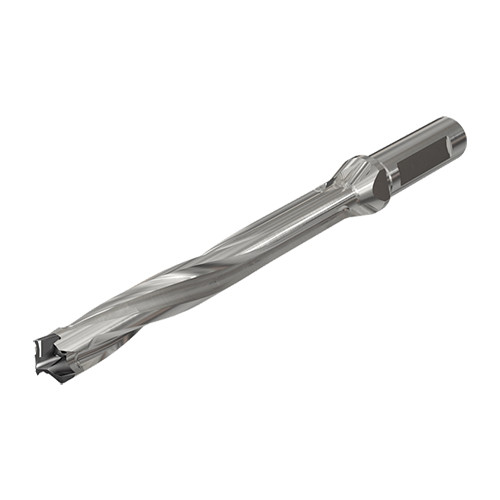

D3N 125-100-16A-8D H13
Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 8xD
Price: Log in For Price

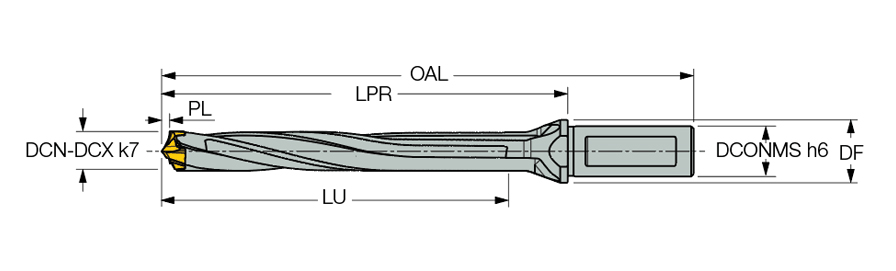

| Cutting Diameter (DC) | 12.5 mm | Protruding Length (LPR) | 125.7 mm |
| Usable Length (LU) | 102.71 mm | Overall Length (OAL) | 173.7 mm |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | H3P 125-IQ |
| Insert Seat Size Code (SSC) | 12 | Point Length (PL) | 2.71 mm |
| Cutting Diameter Minimum (DCN) | 12.5 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 12.9 mm | Flange Diameter (DF) | 20 mm |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.399
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
