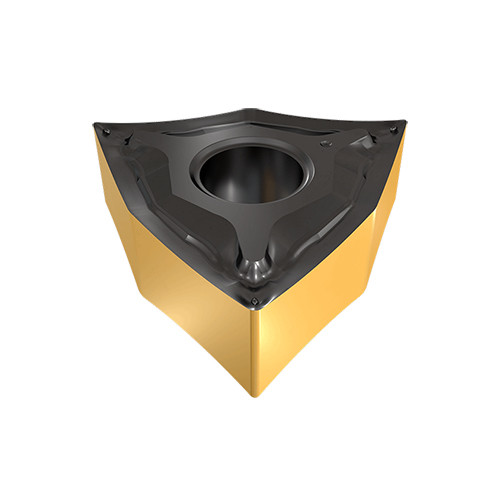

WNMG 330-NF IC807
Double-sided Trigon inserts used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.012″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | WNMG | Min. Turning Feed (ft(min)) | 0.002 ″/rev |

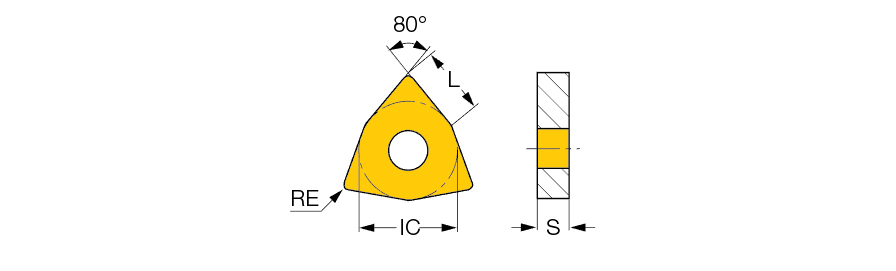

| Corner Radius (RE) | 0.008″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 060 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.257″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | NF |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiAlN+TiN | Series/List # | WNMG 330-NF |
| Grade | IC807 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided Trigon inserts used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.015

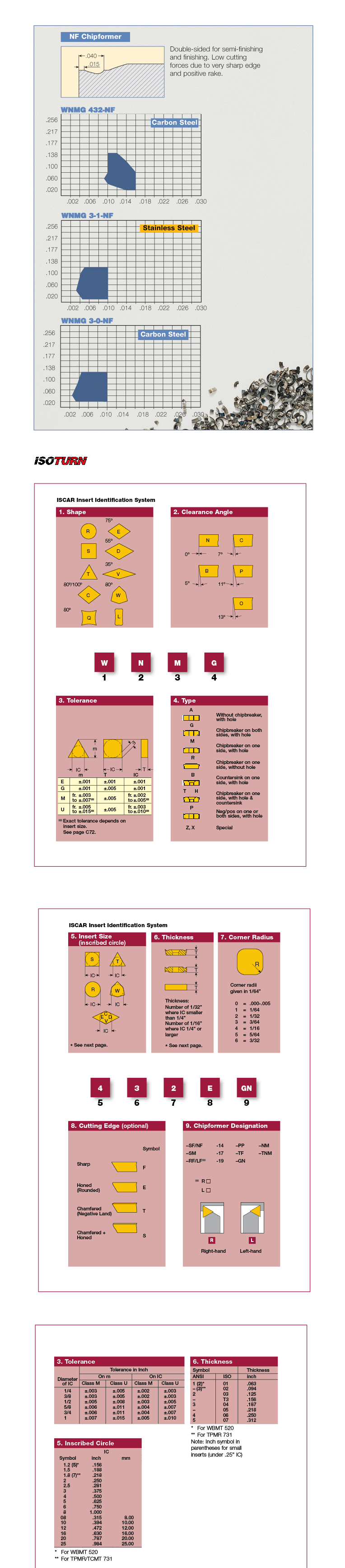

Related Documentation
