CCMW 3-1-M2 IB10H

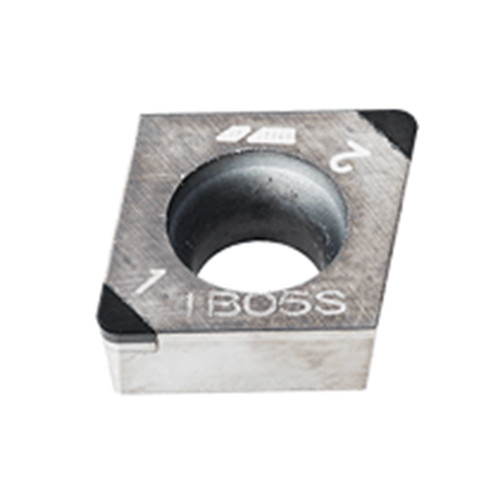

80° positive rhombic inserts with 2 CBN tips for machining hardened steel, sintered metals and high temperature alloys.
Price: Log in For Price

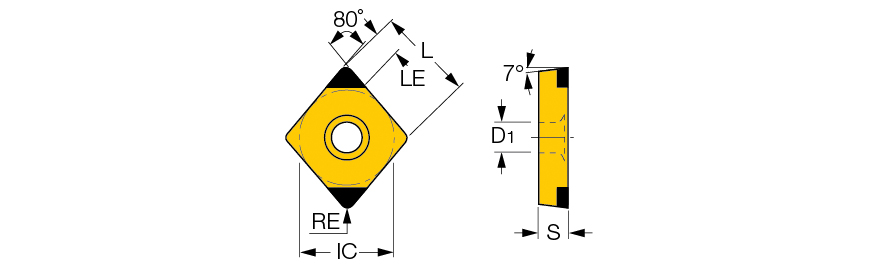

| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | ITSBORE System | | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Style | CCMW | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Size | 09T | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.382″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | M |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Shape | 80° Rhombic |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IB10H | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | 80° positive rhombic inserts with 2 CBN tips for machining hardened steel, sintered metals and high temperature alloys. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
