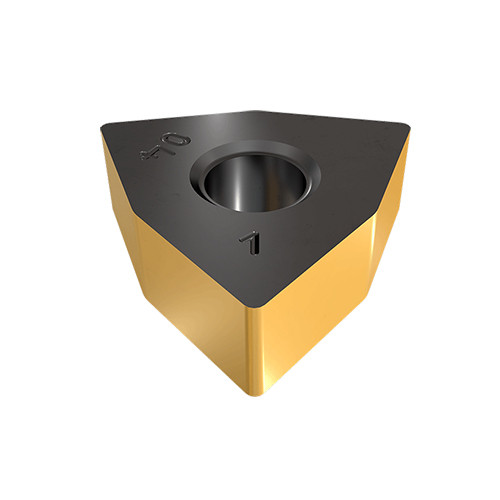

WNMA 3-2 IC428
Double-sided trigon inserts, used for short chipping materials such as cast iron.
Price: Log in For Price
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Min D.O.C. | 0.039″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | WNMA | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |

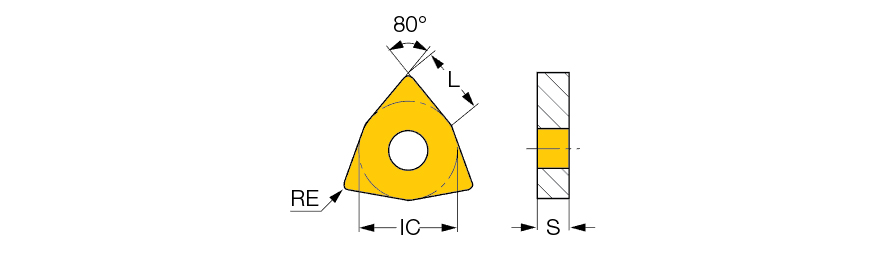

| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Insert Size | 06T | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.257″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiC+Al2O3 | Series/List # | ISOI |
| Grade | IC428 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided trigon inserts, used for short chipping materials such as cast iron. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.013
