DGFH 32-2

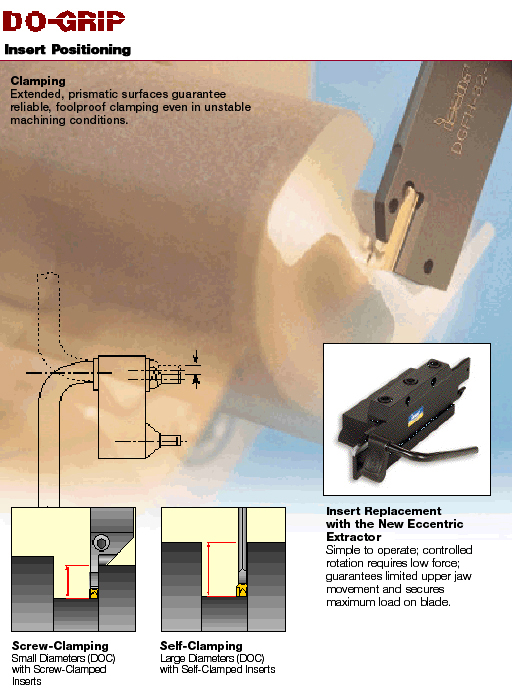

Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".
Price: Log in For Price

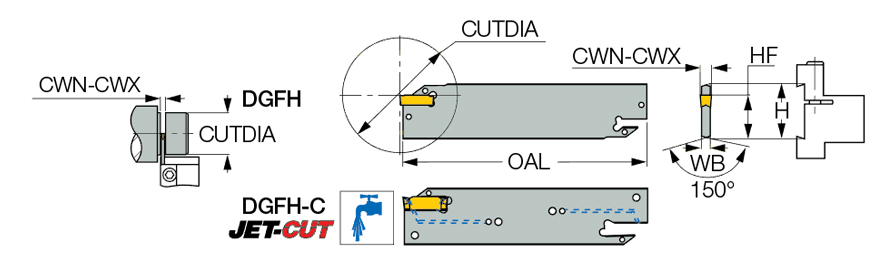

| Shank Height (H) | 1.26″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.075″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.098″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 5.906″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.535″ |
| Functional Length (LF) | 5.906″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Body Width_2 (WB_2) | 0.071″ |
| Number of Pocket (NOP) | 2 | Tool Assembly Length (LTA) | 1.161″ |
Product Features
| Family Description | Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C". | Country of Origin | Israel |
| Remarks | DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified - click on More Info |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.2
Related Documentation
For DG.-1mm inserts, modify holder pocket according to depth capacity table.
