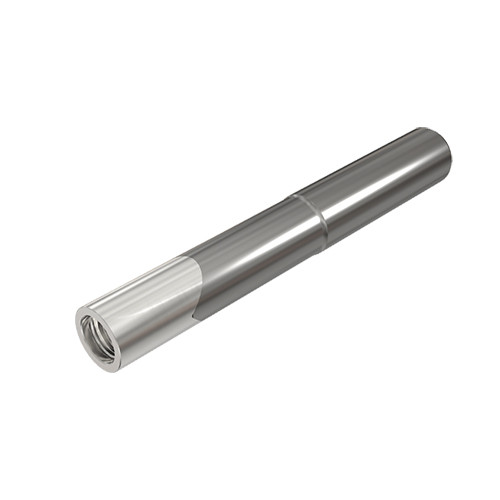

MM S-A-L6.0/1.5-C1.25-T21
MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.
Price: Log in For Price

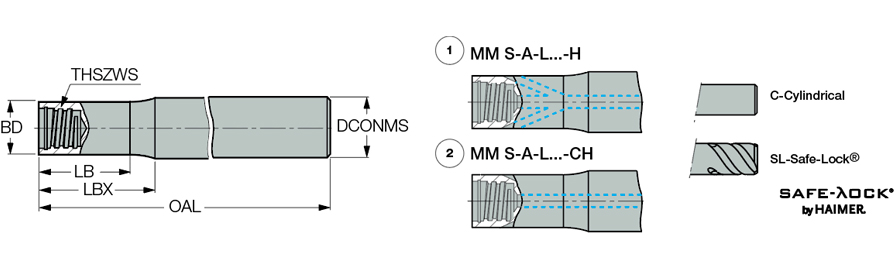

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T21 | Body Length (LB) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Weight of Item (WT) | 0 Lbs |
| Material | Carbide | Measurement Type | Inch |
| Overall Length (OAL) | 6″ | Rotational Speed Maximum (RPMX) | 12690 Rev/min |
| Body Length Maximum (LBX) | 1.63″ | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 1.181″ |
Product Features
| Family Description | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
