D3N 0512-256-063A-5D

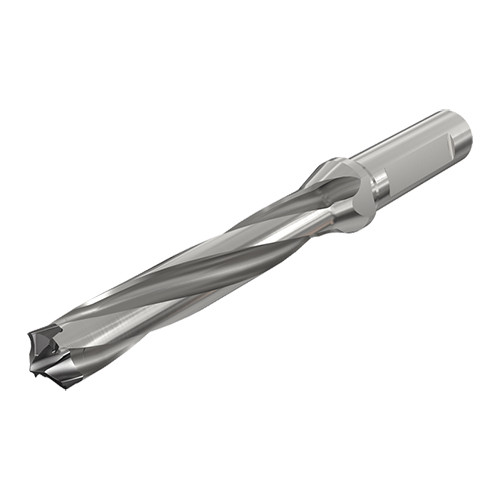

Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 5xD
Price: Log in For Price

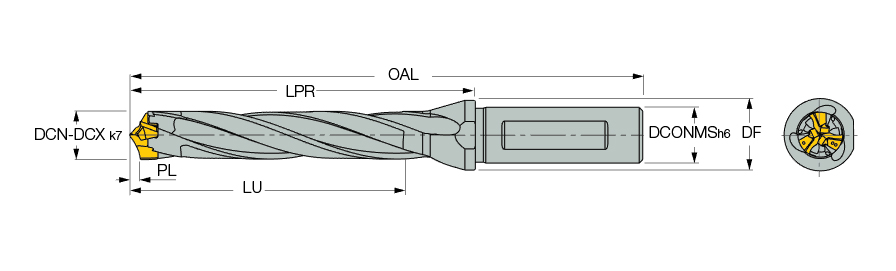

| Cutting Diameter (DC) | 0.512″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.674″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Master Insert Identification (MIID) | H3P 130-IQ |
| Insert Seat Size Code (SSC) | 13 | Point Length (PL) | 0.1146″ |
| Cutting Diameter Minimum (DCN) | 0.512″ | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 0.528″ | Angle | 140 Degrees |
| Protruding Length (LPR) | 3.62″ | Body Material | Steel |
| Functional Length (LF) | 3.513″ | Flange Diameter (DF) | 0.79″ |
| Overall Length (OAL) | 5.515″ | Decimal Equivalent | 0.512″ |
| Shank Length (LS) | 1.89″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.373
