MM HCR.312-2T05 IC908

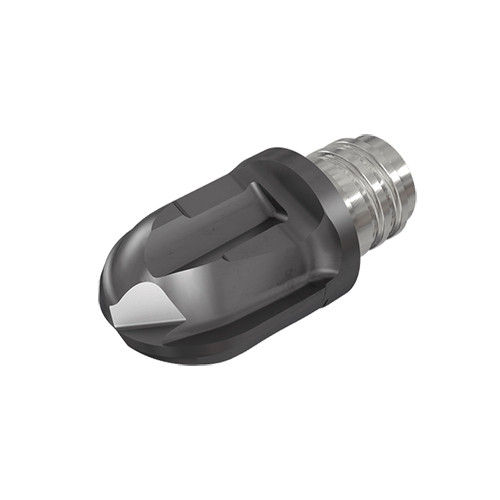

MULTI-MASTER interchangeable solid carbide 2 flute, ball nose milling heads
Price: Log in For Price

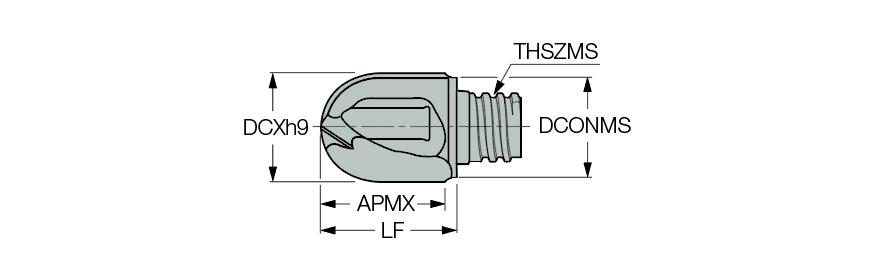

| Application | | Profiling | | Overall Length (OAL) | 0.67″ |
| Cutting Diameter (DC) | 0.312″ | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.156″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 0.31″ | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.3″ | Body Material | Carbide |
| Functional Length (LF) | 0.39″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 6 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide 2 flute, ball nose milling heads | Country of Origin | Israel |

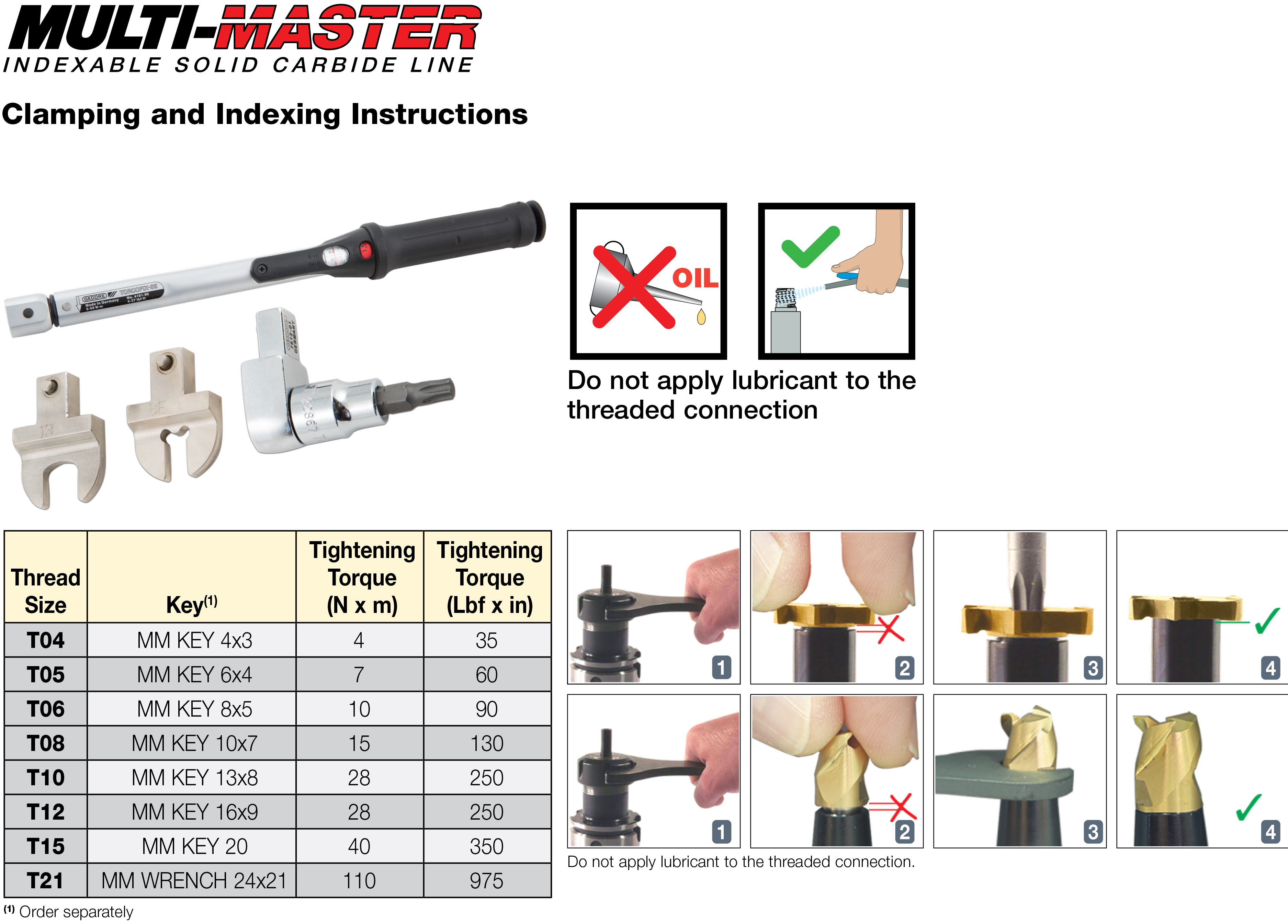

| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.031
