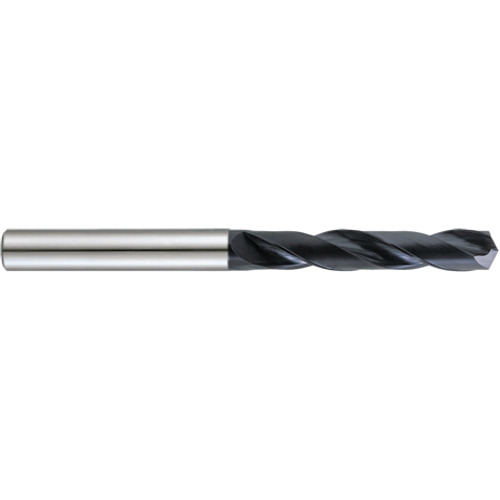

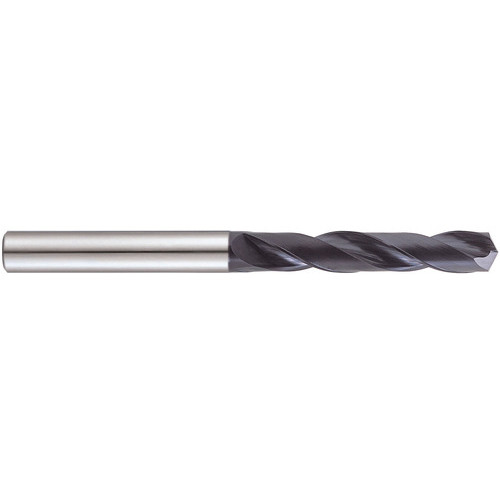

1/4 3XD DREAM CLNT HOLE
SC Drill; 1/4″ Dia. × 17/64″ Shank Dia. × 3.465″ OAL × 1.279″ LCF ; 140 Degrees ; 3xD ; TiAlN ; Series DH416
Price: Log in For Price
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ | Tool Type | Carbide Dream Drill w/Coolant - 3xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.35 mm | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | DH416 |
| Coating | TiAlN | Usable Length (LU) | 32.5 mm |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 1.279″ |
| Connection Diameter Machine Side (DCONMS) | 17/64″ | Overall Length (OAL) | 3.465″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0455″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
