Shank Size (SS) | ST5/8 | Tool Type | Cylindrical Shanks |
Connection Size (CSI) | ER11 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022″ |
Body Diameter (BD) | 0.63″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.278″ |
Protruding Length (LPR) | 0.768″ | Measurement Type | Inch |
Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Material | Steel |
Shank Standard | GTI ER Tapping Attachment | Diameter Range | .022-.278inch |
Shank Length (LS) | 5.905″ |



Product Features

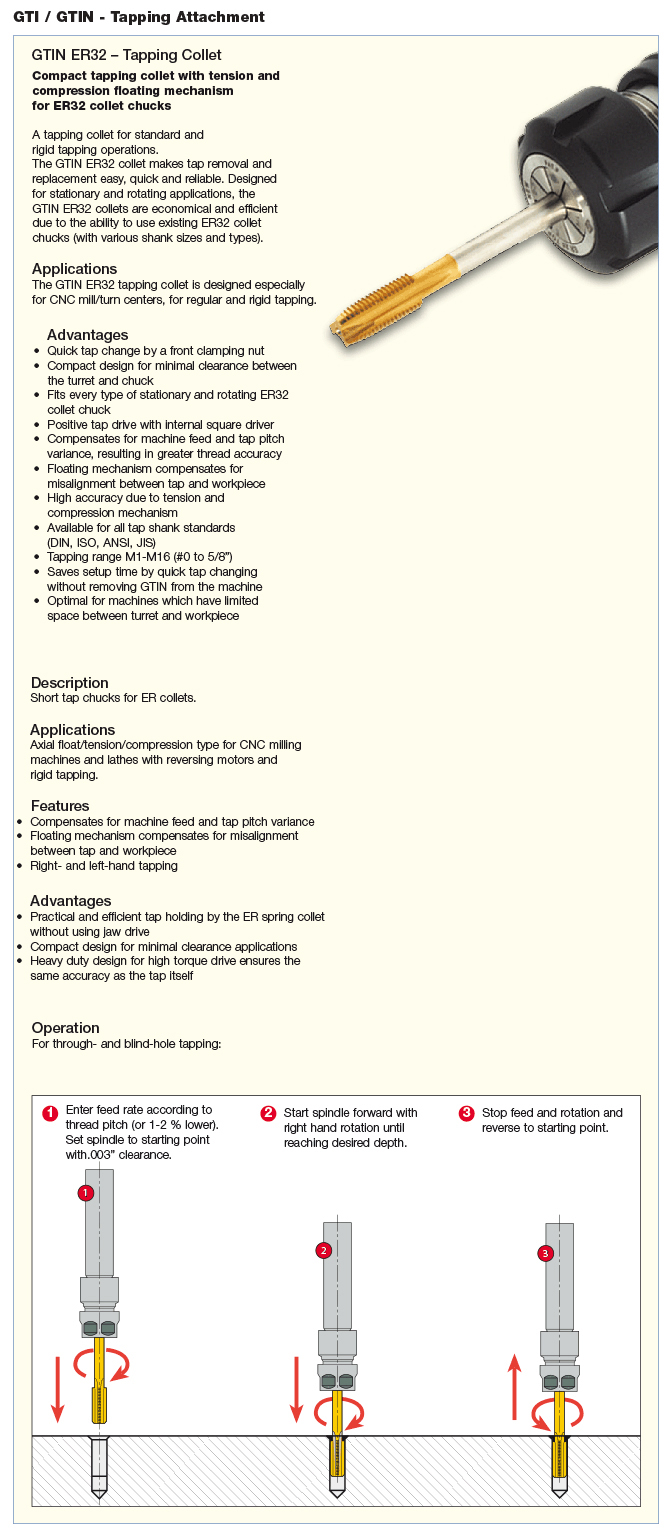

Family Description | DIN 6499 ER tapping attachments with straight shanks. | Country of Origin | Israel |
Remarks | For Adaptation, Click on More Info |
Shipping Info
Package Length
7.00000
Package Width
4.00000
Package Height
4.00000
Package Weight
0.465
