A-SCLCR 12-3
Screw lock boring bars for 80° rhombic inserts with 7° clearance
Price: Log in For Price

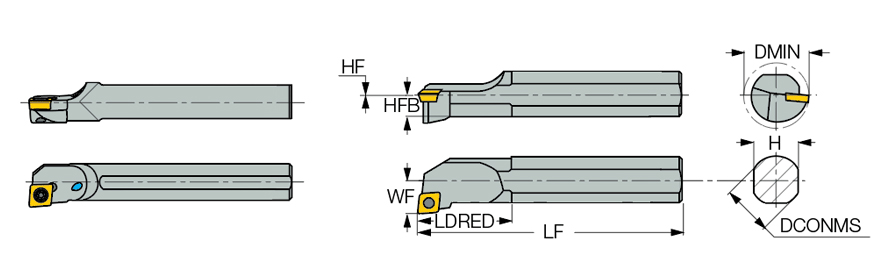

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 7″ | Shank Type | Round Shank w/3 Flats |
| Reduced Body Diameter Length (LDRED) | 1.438″ | Application | | Int. 80° Diamond 95° Approach | |
| Shank Height (H) | 0.725″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 0.594″ | Rake Angle Radial (GAMF) | -5 Degrees |
| Master Insert Identification (MIID) | CC.. 3 | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 1″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw lock boring bars for 80° rhombic inserts with 7° clearance | Country of Origin | Japan |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
LocalField10
0
Package Weight
0.804
