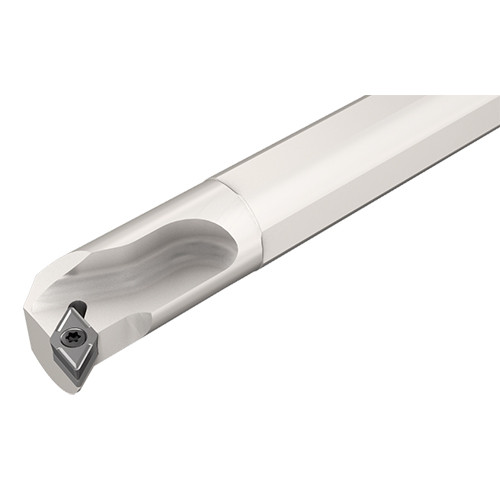

E-SDUCR 10-2
Screw lock boring bars for 55° rhombic inserts with 7° clearance.
Price: Log in For Price

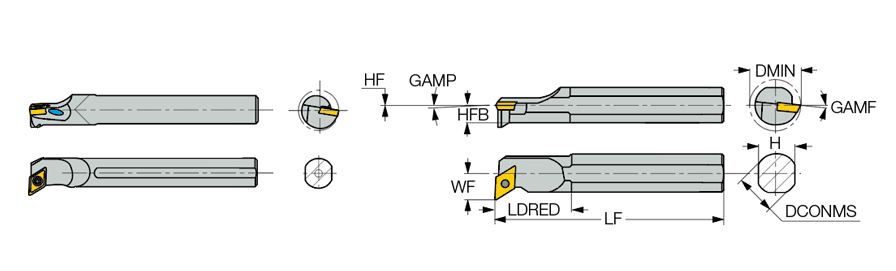

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 8″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Shank Height (H) | 0.591″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 0.43″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Master Insert Identification (MIID) | DC.. 2 | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.787″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Position | Internal |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
Product Features
| Family Description | Screw lock boring bars for 55° rhombic inserts with 7° clearance. | Country of Origin | Israel |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
LocalField10
0
Package Weight
1.113
