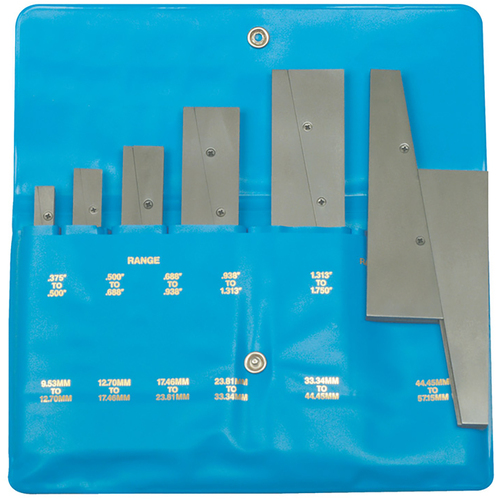

| Type | Adjustable Parallel Set | Maximum Measurement | 2 1/4″ |
| Model No | 52-437-006 | Minimum Measurement | 3/8″ |
| Number of Pieces | 6 | Sizes Included | 3/8″ - 1/2″, 1/2″ - 11/16″, 11/16″ - 15/16″, 15/16″ - 1-5/16″, 1 5/16″ - 1 3/4″, 1 3/4″ - 2 1/4″ |
Product Features
| Remarks | •Each parallel has two dovetailed pieces that slide on each other and lock in position with set screws •Easily adjusted and set up to size with a micrometer •Can be quickly inserted in slots and expanded to size •Sizes: 3/8″ - 1/2″, 1/2″ - 11/16″, 11/16″ - 15/16″, 15/16″ - 1 5/16″, 1 5/16″ – 1 3/4″, 1 3/4″ – 2 1/4″ •Slot size determined by measuring the parallels externally with a micrometer. | Country of Origin | USA |
Shipping Info
Package Length
10.80000
Package Width
6.40000
Package Height
1.00000
Package Weight
2.05
