SDNCN 0808F-07

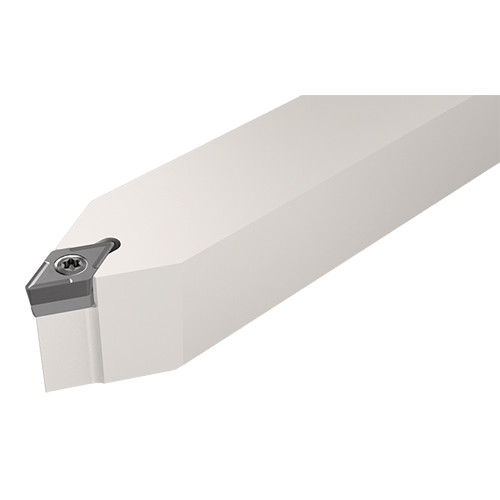

Screw lock tools carrying 55° diamond inserts with 7° clearance angle.
Price: Log in For Price

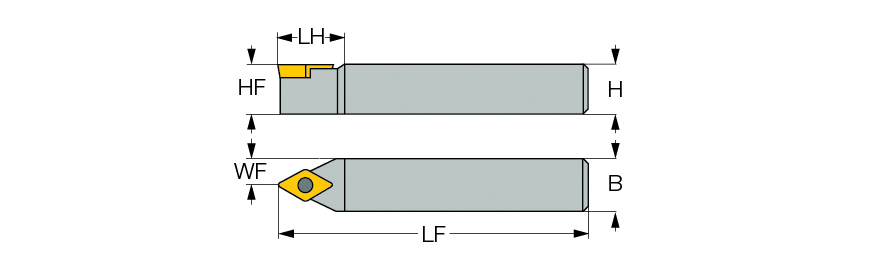

| Shank Height (H) | 8 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 8 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 80 mm | Body Material | Steel |
| Head Length (LH) | 14 mm | Cutting Position | External |
| Functional Width (WF) | 4 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | DC..0702 | Insert Style | 80mm |
| Application | | Ext. 55° Diamond 62.5° Approac | |
Product Features
| Family Description | Screw lock tools carrying 55° diamond inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.103
